IO-HUB GPIO Probe

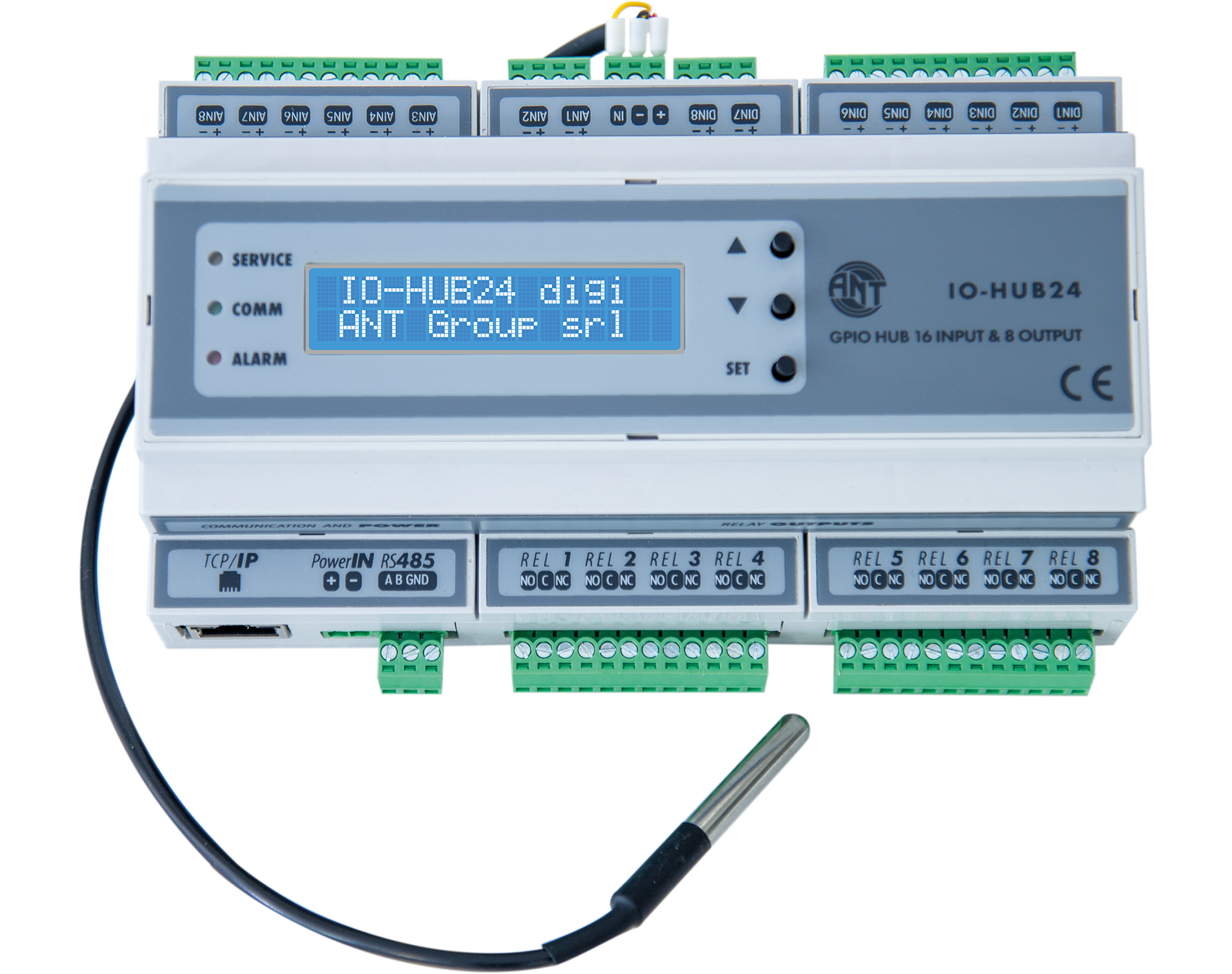

The IO HUB is our new generation Ethernet HUB GPIO module (GPIO “General Purpose Input/Output”) suitable for electrical devices control and monitor over the Internet. It connects a set of 8 SPDT relays, 8 analog inputs and 8 optically isolated digital inputs to Ethernet and make them available through the SNMP protocol. It also provides a dedicated input for temperature probes, a RS485 interface and a built in real time clock. It can be accessed locally or remotely via web browser for configuration.
The network parameters (IP address, gateway and mask) and other options (e.g. the maintenance mode) can be locally set by means of the built-in display and keyboard allowing an easy installation without the needs of a PC.
Test operations are possible via the local user interface as the current value of all the inputs and outputs is shown on the display. Moreover, in maintenance mode, the status of each output relay can be manually forced. All the electrical connections are made by plug-in connectors for an easy installation and removal.
INPUT
Analog Input n°8: 0-50Vdc in four selectable ranges, resolution 12 bit.
Digital Input n°8: Optically isolated. Activated by voltage (5-24Vdc) or dry contact.
Relays Output n°8: SPDT, 1A/50Vdc
PT100 input n°1: Three wires
MISCELLANEOUS
Communication: SNMP protocol
Alarms: SNMP Trap with programmable thresholds and polarity

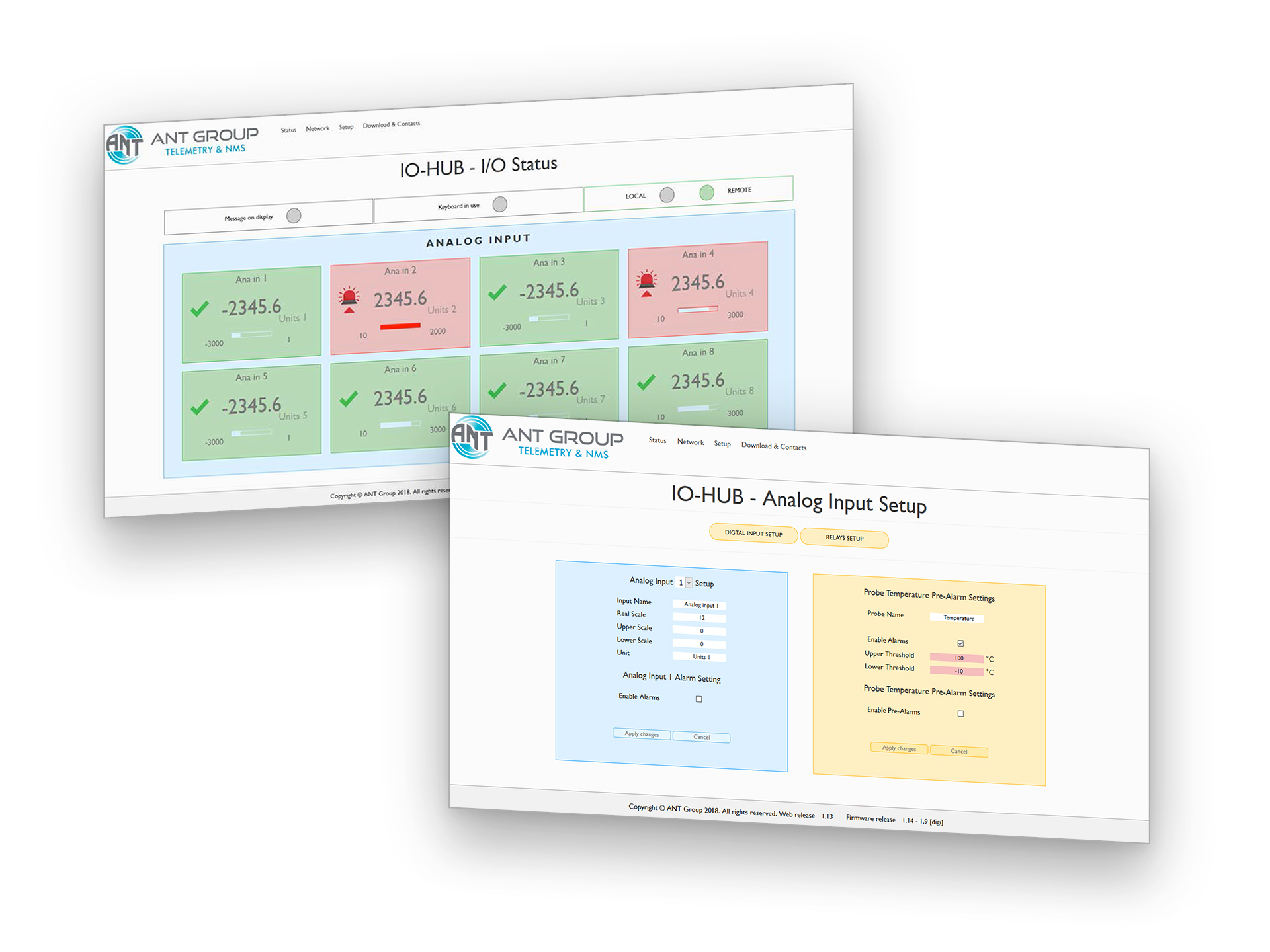

Setup: Through Web page and SNMP
Software: Remote upgrade capability
TC18 TECHNICAL SPECIFICATION
Sensor type: PT100 / 3 wires
Temperature Range: -40 +80 °C
Cable lenght: 2m
Cable material: Silicon
Probe housing: stainless steel
CONNECTIONS
Ethernet/POE: RJ45
RS485 Available for custom applications
POWER SUPPLY
PoE: PoE 802.3af (class 0).
Power can also be supplied through a 48 Vdc / 0.25 A PoE power injector.
External supply: 12 Vdc / 0.5 A
ORDERING CODES
IO-HUB-24 GPIO HUB with 8+1 Analog IN, 8 Digital In, 8 Relays OUT
TC18 Temperature probe for IO-HUB24
