EnergyPOD
The power metering system
The energy probe is digital metering system that display and communicate major electrical parameters coming from power sources. To suit user requirements the range includes single-phase, three-phase four-wire capabilities. Total compliance with IEC 61036 standard, class 1
Operation
The digital meters are available in a panel mounted enclosure with a display to show the electrical parameters including the true rms values, current, voltage, power factor, phase angle, active/reactive energy, and frequency values. The simple menu-driven interface offers the interface before settings, configuration of selected communication options and adjustment of operating parameters.

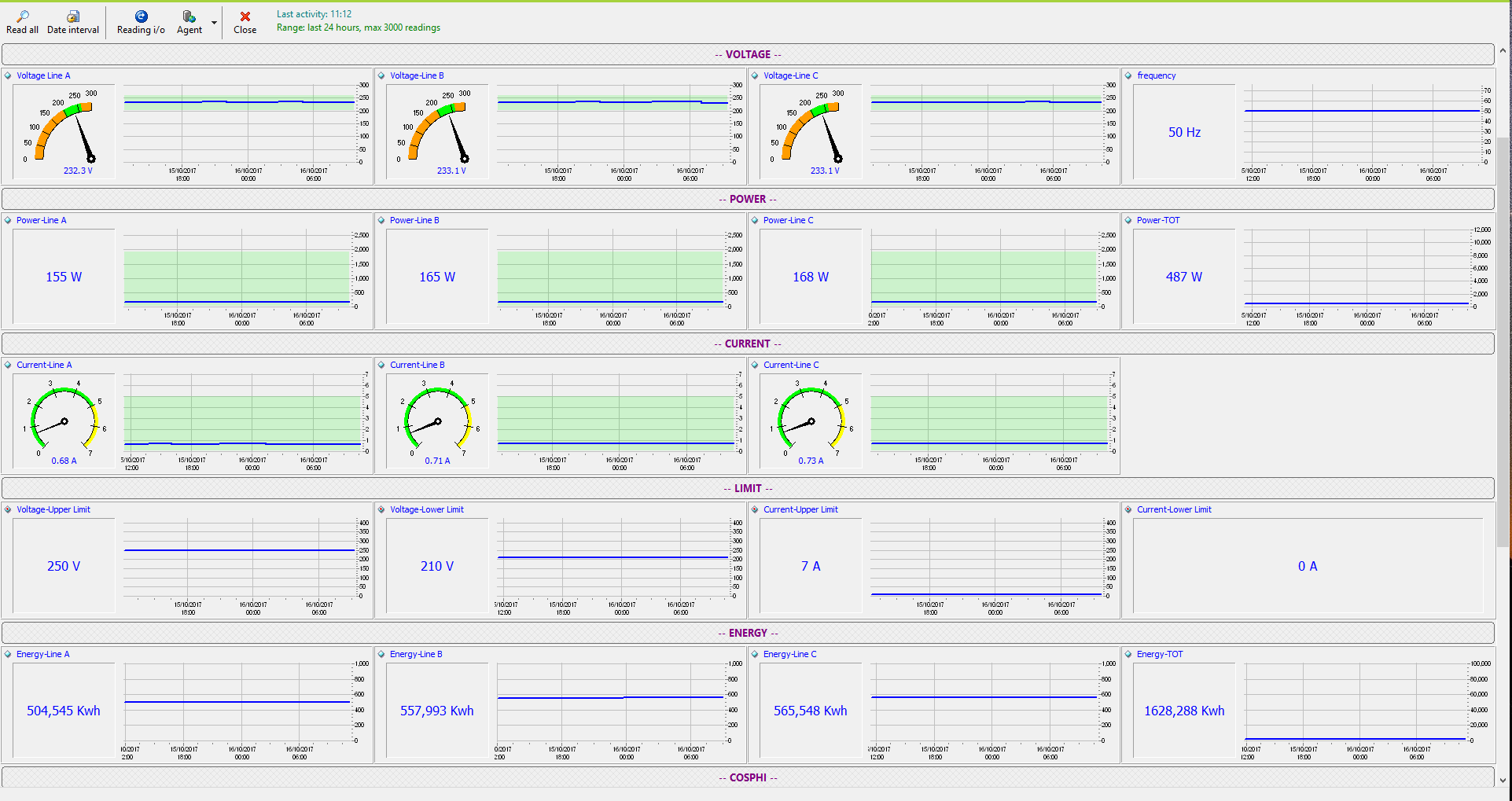

MEASURED PARAMETERS
System volts
System current
System active power
System reactive power
Phase-neutral voltages (VL-N)
Phase current
Frequency
Active power per phase
Reactive power per phase
Power factor (PF)
Total active energy Wh
Mean and peak values
Time and date
Hours run
STANDARD
IEC 61036 standard, class1
IP40 front panel, IP20 body
(EN 60715) plastic model case
ACCURACY
Voltage 0.5 % ± 1 digit
Current 0.5 % ± 1 digit
Frequency ± 0.1Hz
Power factor ± 3 digit
Active power (W) 1% ± 1 digit
Reactive power (Var) 1 % ± 1 digit
Apparent power (VA) 1 % ± 1 digit
Active energy (Wh) Class 2
Reactive energy (VArh) Class 3
Ambient temperature 20°C
Input frequency 50/60Hz
Input waveform Sinusoidal
Auxiliary supply voltage 230V
Auxiliary supply frequency 50/60Hz
Magnetic field of external origin Terrestrial flux.
TECHNICAL SPECIFICATIONS
Nominal rated input voltage 50–500V ac L-L(30-300V L-N) 50/60Hz
Nominal input voltage burden < 2 VA
Nominal rated input current 0.25 – 6A ac rms
Nominal input current burden < 2 VA
System CT primary values 1-9999 A (secondary 5 A)
System VT primary values 1-9999 V (secondary 230V)
ORDERING CODES

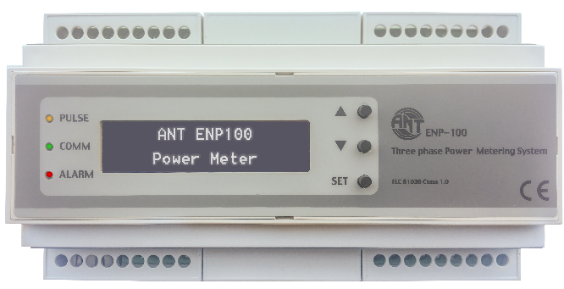

ENP-100 Energy probe three phases power metering system
ENP-200 Energy probe Three channel power meter / distributor
